PAT RED > AUTOMATIC SECTIONAL DOOR > Advance XL |
DEA มอเตอร์ประตูพับขึ้นอัตโนมัติ รุ่น ADVANCE XL
รองรับบานประตูที่มีขนาดพื้นที่สูงสุด 16 ตรม. ความเร็วในการเปิด-ปิดอยู่ที่ 16 ซม./วินาที
Maximum door surface area 16 sqm. Door opening speed 16 cm/sec
คุณสมบัติ |
เหมาะกับประตูบานพับอัตโนมัติสำหรับที่อยู่อาศัย เช่น ประตูโรงรถ ประตูตึกแถว (ทาวน์เฮ้าส์)
– เปิด-ปิดด้วยความเร็วที่ 16 ซม./วินาที
– ขับเคลื่อนด้วยมอเตอร์ 24V DC พร้อมระบบ ENCODER
– ตู้คอนโทรลวางแยกกับมอเตอร์และสามารถติดตั้งบนกำแพง ทำให้สะดวกต่อการตั้งค่าต่างๆ
– สามารถติดตั้งมอเตอร์ที่บริเวณฝั่งประตูบานพับ แทนการติดตั้งกลางห้องเหมือนมอเตอร์ทั่วไป ช่วยแก้ปัญหาการติดตั้งมอเตอร์ในห้องที่มีพื้นที่จำกัด
– สามารถเพิ่มเเบตเตอรี่สำรองได้เพื่อใช้งานเมื่อไฟดับ (อุปกรณ์เสริม)
– สามารถเพิ่มอุปกรณ์เสริมอื่นๆ ตามความต้องการ เช่น รีโมท สวิตช์ติดผนัง แป้นพิมพ์สำหรับระบบควบคุมการเข้า-ออก เป็นต้น หรืออุปกรณ์เสริมเพื่อสั่งงานผ่านโทรศัพท์มือถือ
– สินค้านำเข้าจาก ประเทศอิตาลี 🇮🇹
Product Features |
Designed for semi-intensive use for residential areas such as garage doors or townhouses
– Quick opening at 16cm/s
– 24V DC operator with ENCODER
– Control unit is separated from the motor and can be installed on the wall for easier programming
– Possible to install the motor at the side of the door instead of the middle of the room, thus overcoming space problems
– Battery set available for emergencies (optional)
– Recommended accessories include remote controls, wall switches, keypads, etc. or through mobile applications (optional)
– Imported from Italy 🇮🇹

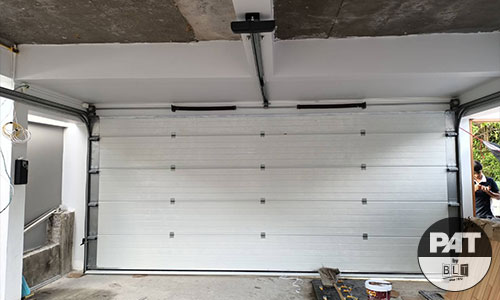

ผลงานการติดตั้ง
ADVANCE/N/XL | |
Power supply | 230V |
Motor supply | 24V DC |
Rated power | 220 W |
Max. thrust force | 1200 N |
Door surface area | 16 sqm. |
Opening speed | 19 cm/sec |
Encoder | Two-channel encoder technology |
Max. cycles per day | 75 |
Sound pressure | less than 70 dB |
Protection rate | IPX0 |
Operating temperature | - 20°C to +50°C |
